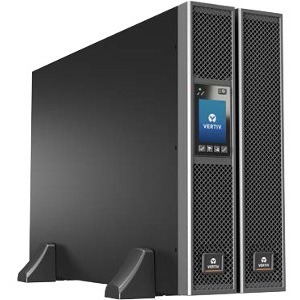

Vertiv Liebert GXT5 UPS - 10kVA/10kW/208 and 120V|Online Rack Tower Energy Star
Vertiv Liebert GXT5 UPS - 10kVA/10kW/208 and 120V|Online Rack Tower Energy Star - Double Conversion| 6U| Built-in RDU101 Card| Color/Graphic LCD| 3-Year Warranty
| $10,322.32 | Retail $12,895.00 |
- HIGH POWER FACTOR (0.9-1.0): More usable power allows more connected loads saving space and costs.
- REMOTE MANAGEMENT: Optional Vertiv RDU101 network communications card with advanced features.
- 3-YEAR WARRANTY: 3-year comprehensive coverage including battery with options for 2-year extension.
- ENERGY EFFICIENT (up to 95%): Energy Star 2.0 certified with high normal operating efficiency.
- EASY-TO-USE INTERFACE: Tower/rack mount design with gravity sensing graphical color display.
By:
Liebert
Manufacturer:
Vertiv
Product ID:
61412
Item:
GXT5-10KMVRT6UXLN
UPC Code:
767041026436
Our Part #
6RU159
Condition
New
$10,322.32EA
$12,895.00
$12,895.00
Availability
Only 29 Left In Stock
Product description
Vertiv Liebert GXT5 UPS - 10kVA/10kW/208 and 120V|Online Rack Tower Energy Star - Double Conversion| 6U| Built-in RDU101 Card| Color/Graphic LCD| 3-Year Warranty
Double Conversion| 6U| Built-in RDU101 Card| Color/Graphic LCD| 3-Year Warranty
Specifications
Backup/Run Time With External Battery Cabinet (Full Load)
13 Minute
Backup/Run Time With External Battery Cabinet (Half Load)
33.50 Minute
Bypass Switch
Automatic & Manual
Bypass Switch
Internal
Bypass Switch
Maintenance
Environmental Sensors
Humidity Sensor
Environmental Sensors
Leak Detection Sensor
Environmental Sensors
Temperature Sensor
Maximum Operating Elevation
9842.52 ft
Modem (RJ-11)
No
Number of External Battery Cabinets
1
Phase
Single Phase
Receptacle Detail
1 x Hardwired
Storage Temperature
5°F (-15°C) - 104°F (40°C)
UPC Alternates
767041026436
User Selectable Output
208/120VAC
Utility (AC) Mode Overload
- 105% to 125% for 5 minutes
- 125% to 150% for 60 seconds
- >150% (impact load) minimum 200 ms
Waveform Type
Pure Sine Wave
Additional Information
- Package Type: Natrual corrugated with single color silk screen
- Dataline Protection: No
- Auto Shutdown Software: Trellis Power Insight
Application/Usage
Data Center
Application/Usage
Network
Application/Usage
Mission Critical Equipment
Backup/Run Time (Full Load)
4.50 Minute
Backup/Run Time (Half Load)
12.50 Minute
Battery Characteristics
Valve-regulated/Non-spillable/Flame-retardant/Hot-swappable
Battery Chemistry
Lead Acid
Brand Name
Liebert
Certifications & Standards
- Surge Immunity: IEEE/ANSI C62.41 Category A & B
- Transportation: ISTA Procedure 1E
- Safety: UL1778 c-UL listed
- Emissions: FCC Part 15 (Class A)
Country of origin
China
Depth
25.6"
Emergency Power OFF
Yes
Environmental Certification
REACH
Environmental Certification
RoHS
Form factor
Rack/Tower
Height
10.2"
Input frequency
60 Hz
Input voltage
208 V AC
Limited Warranty
3 Year
Load Capacity
10000 VA
Manufacturer
Vertiv
Manufacturer Part Number
GXT5-10KMVRT6UXLN
Manufacturer Website Address
http://www.vertiv.com/
Marketing Information
The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 10kVA online double conversion UPS offers continuous power conditioning in centralized and edge locations. With high power factor (0.9-1.0) it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 208V in/ 208 and 120V out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display.
Marketing Information
The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 10kVA online double conversion UPS offers continuous power conditioning in centralized and edge locations. With high power factor (0.9-1.0) it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 208V in/ 208 and 120V out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display.
Maximum Operating Temperature
104°F (40°C)
Output voltage
120 V AC
Package Contents
- GXT5 10kVA 208/120V OL-Double Conversion R/T UPS
- 4 Post Fixed Rail Kit
- Tower Stand
- USB Cable
- Quick Start Guide
- Safety Instruction Manual
Packaged Quantity
1 Pack
Plug/Connector Type
Terminal Block
Product Name
GXT5 10kVA 208/120V OL-Double Conversion R/T UPS
Product Series
GXT5
Product Type
Dual Conversion Online UPS
Rack Height
6U
Receptacle Type
Hardwired
Status Indicators
LED/Full Color Graphic LCD:
- Alarm / Fault Indication
Transfer Time
0 ns
Weight (Approximate)
224.80 lb
Width
16.9"
